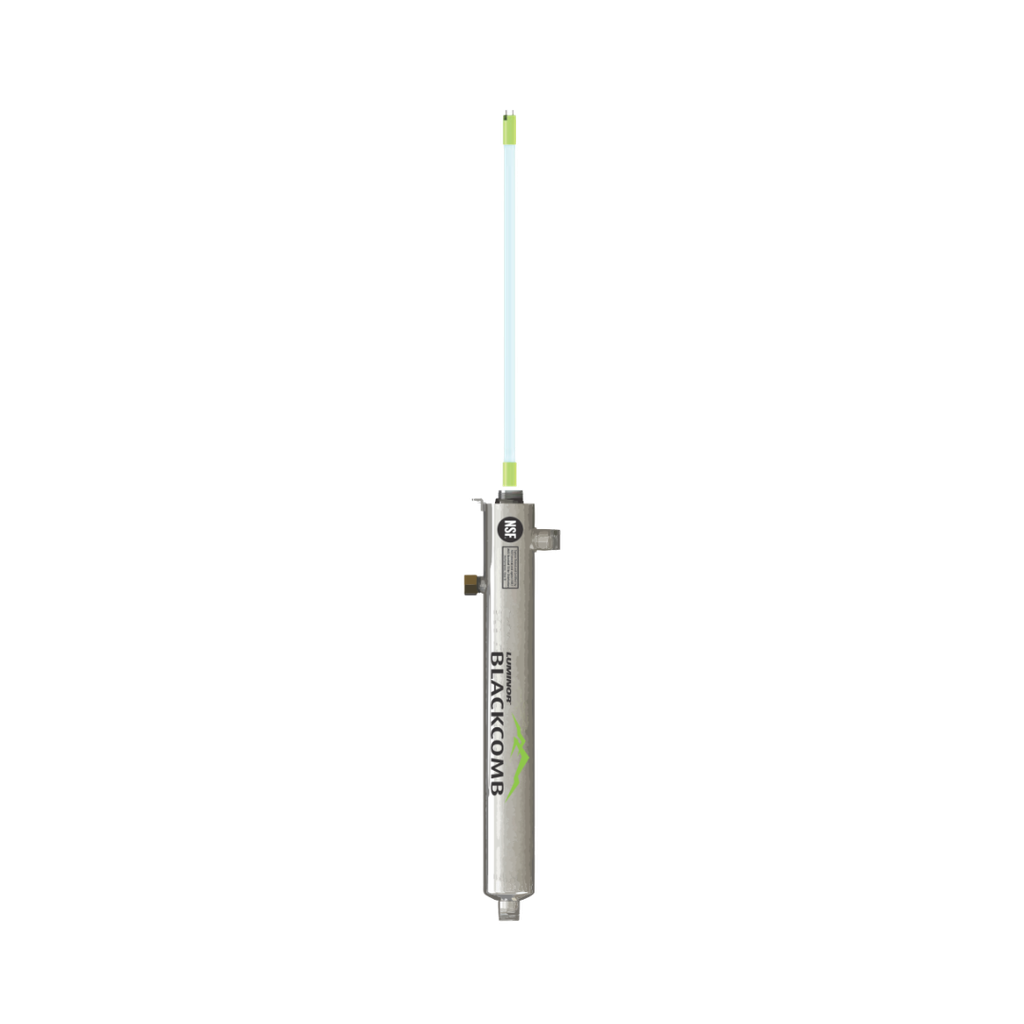

Blackcomb-HO 6.1: High Output UV with UV-monitor

https://www.aqmos.nl/web/image/product.template/12301/image_1920?unique=fb46b10

This product has NPT connections. Use the right fittings!
Dit product heeft NPT aansluitingen. Gebruik de juiste koppelingen!

€ 1.408,00 1408.0 EUR € 1.760,00 Inclusief BTW

€ 1.454,55 € 1.163,64 excl. BTW

Niet beschikbaar voor verkoop

  • Merk
  • Model:
  • UV Monitor
  • Solenoid Output
  • 4-20 mA Output
  • Droge contacten
  • *Notitie

Deze combinatie bestaat niet.

Onze oplossing
LuminorUV
LuminorUV

LUMINOR Environmental is een Canadese fabrikant van ultraviolet-waterbehandelingsoplossingen voor huishoudens en industrie.

SKU :
LBH6-052
Delen

Algemene voorwaarden
90-dagen geld terug garantie
Verzending: 1-3 werkdagen

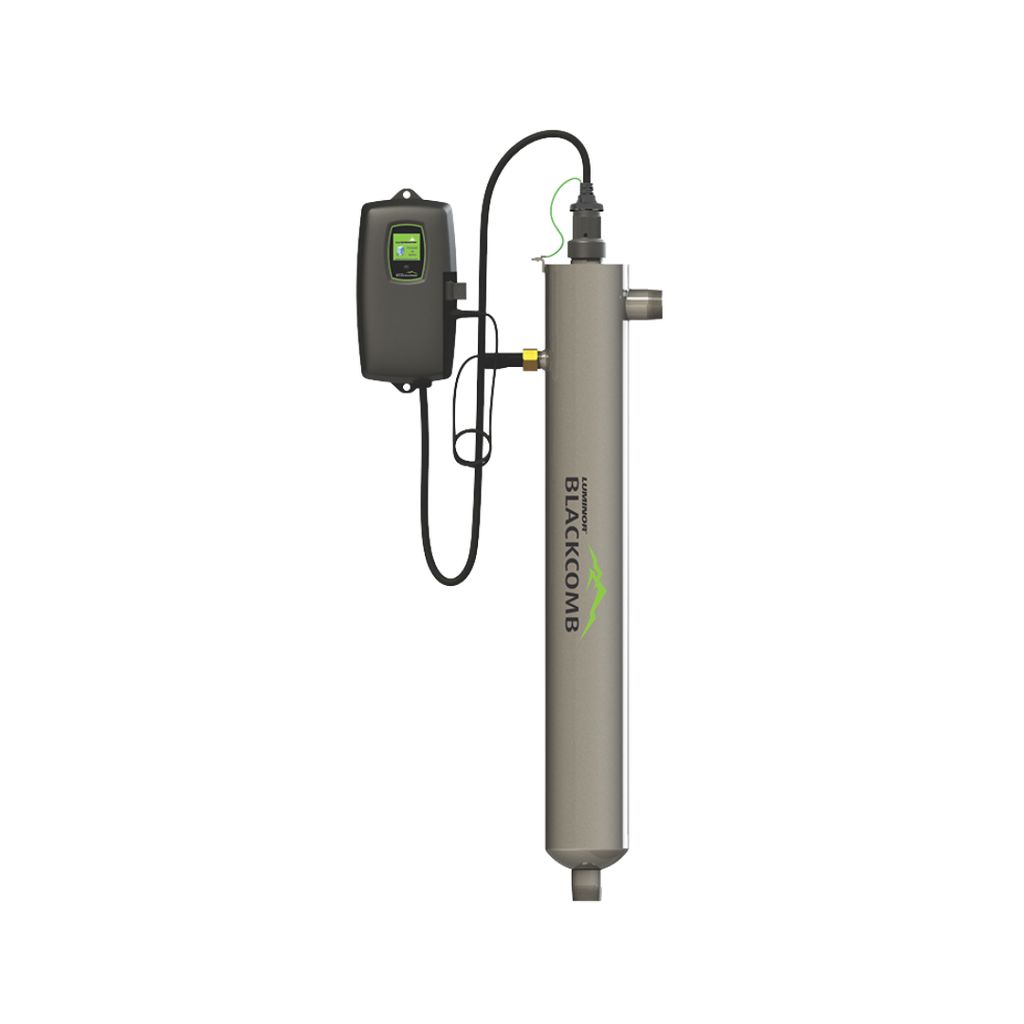

Blackcomb-HO 6.1 UV

Krachtige UV-Zuivering voor Hoge Debieten met Continue Bewaking

De Luminor Blackcomb-HO 6.1 is het ultieme UV-waterzuiveringssysteem, ontworpen voor grote huishoudens en lichte commerciële toepassingen die hoge debieten en continue bewaking vereisen. Met een capaciteit tot 150 liter per minuut (40 gpm) bij 30 mJ/cm², een modulair ontwerp en ingebouwde 254nm UV-monitor biedt dit systeem superieure prestaties, flexibiliteit en gemoedsrust – ideaal voor wie op zoek is naar een geavanceerde en toekomstbestendige oplossing.

Waarom Blackcomb 6.1?

Kies de Blackcomb-HO 6.1 als je hogere debieten (25 gpm+), een compacte installatie, continue UV-bewaking en extra functionaliteiten zoals TOC-reductie en warmwaterbehandeling (tot 65°C) nodig hebt. Voor standaardtoepassingen volstaat de SO-serie. De geavanceerde controller met kleurenscherm, QR-codes en continue UV-bewaking biedt extra gemak en betrouwbaarheid, zelfs in uitdagende omstandigheden zoals lage UVT of regenwaterzuivering.

  • Continue UV-Bewaking: 254nm monitor controleert lampwerking 24/7 voor maximale zekerheid.

  • Hoge debieten: Behandelt tot 40 gpm (150 L/min), perfect voor grote gezinnen, lodges of kleine bedrijven.

  • Gebruiksvriendelijk: Kleurenscherm toont UV-intensiteit, lampduur en foutcodes.

  • Modulaire en uitbreidbaar: Voorzien van een uitbreidingspoort voor toekomstige upgrades, zoals droge contacten of 4-20mA-uitgang.

  • Duurzaam en compact: Gemaakt van 316L roestvrij staal voor superieure corrosiebestendigheid en een kleinere footprint dan standaard systemen.


Hoe Werkt Het?

UV-licht vernietigt schadelijke ziektekiemen, levert zuiver water voor drinken, vee of verwerking – zonder smaak- of geurverandering.


Ideaal Voor

  • Grote huishoudens met hoog waterverbruik

  • Kleine commerciële locaties, zoals campings of bedrijven

  • Regenwaterzuivering (met optionele voorfilters)

  • Systemen met heet water (tot 65°C) of hoog TOC

  • Zorginstellingen of voedselverwerking met strenge eisen

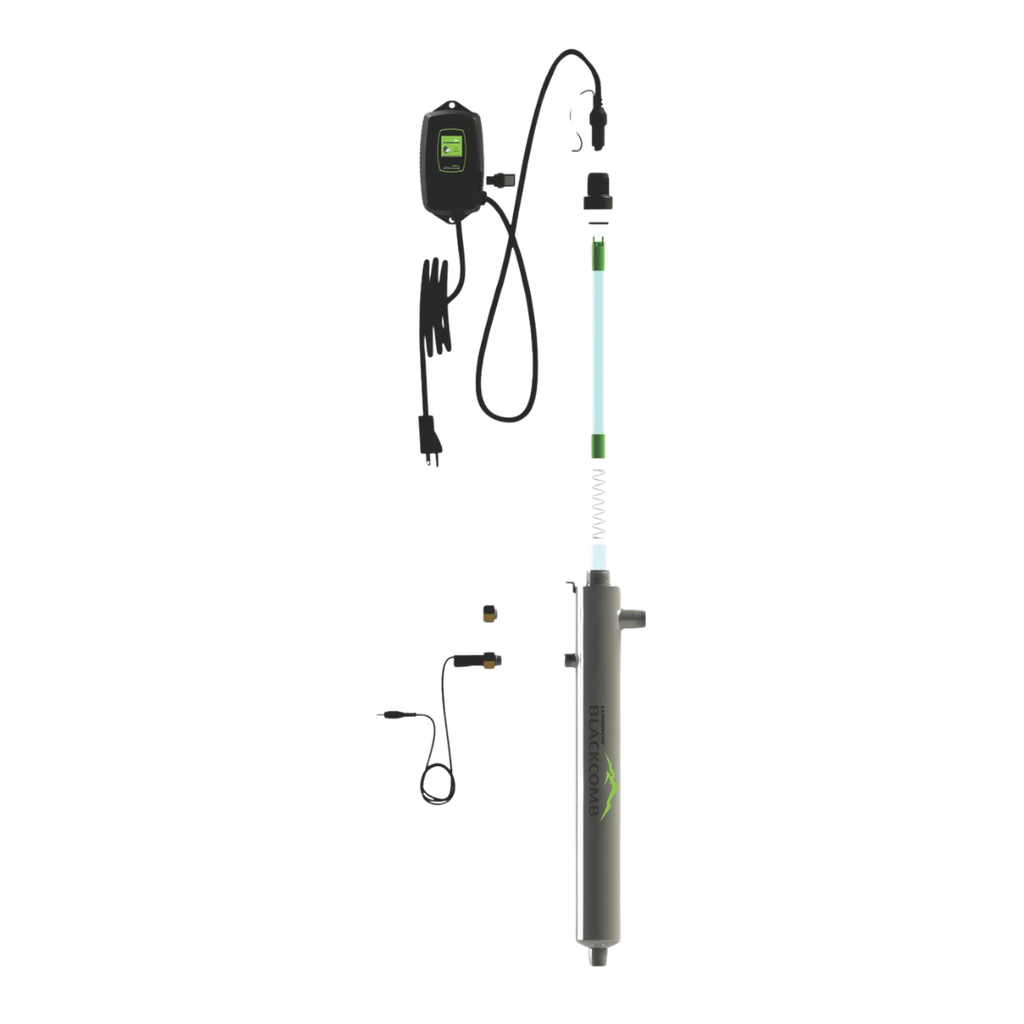

Wat Zit Erbij?

Bekijk onze unboxing-video voor de roestvrijstalen reactor, UV-lamp, kwartsglas en geavanceerde controller.
(Video toont Blackcomb 5.1 High Output)

Blackcomb 6.1 Controller Schermen

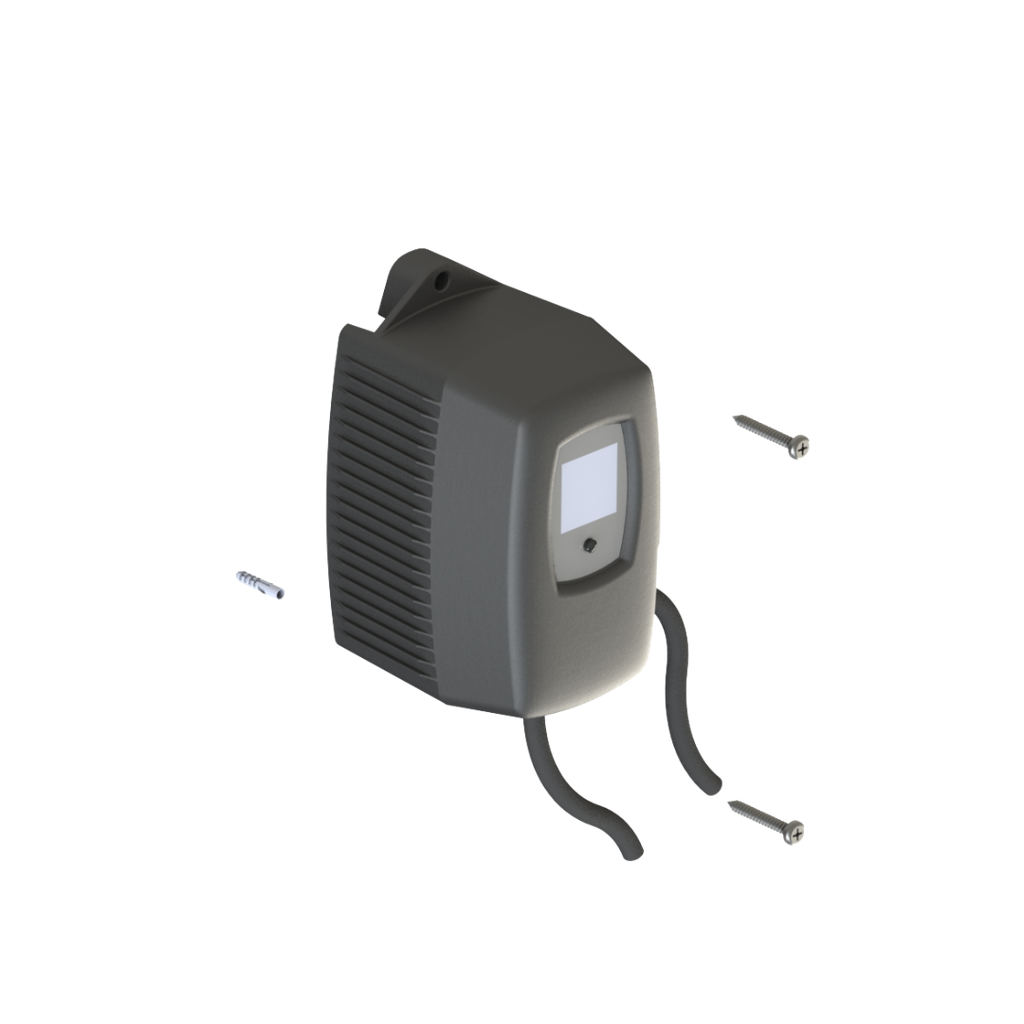

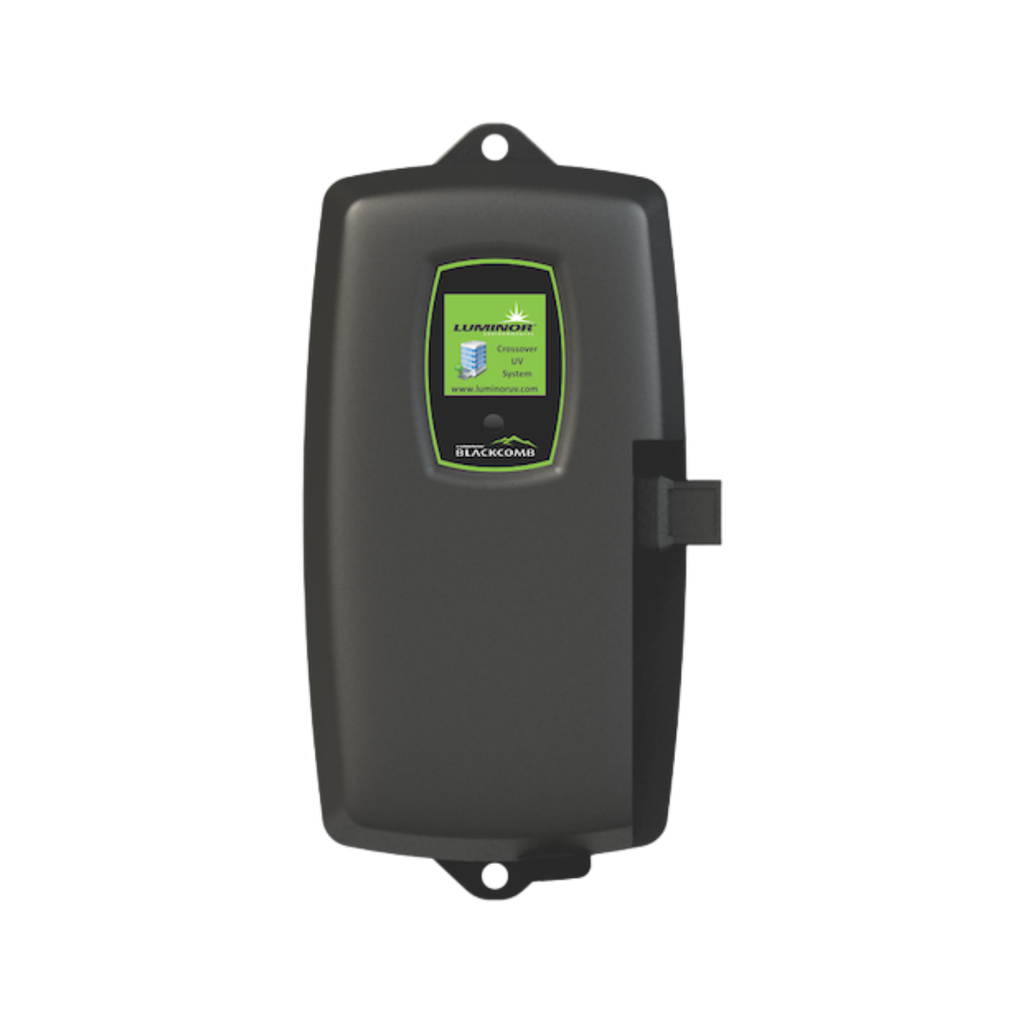

RC-B56.02 controller
Startscherm
Levensduur
UV-Monitor (inbegrepen)
Waarschuwing
Contact

en meer ...

6.1 Modules

6.1 Ultrasonic Flow Meter module

De Ultrasone Flowmeter Module bespaart energie en verlengt de levensduur van uw LUMINOR BLACKCOMB UV-systeem door nauwkeurige, onderhoudsvrije debietmeting en slimme dimfunctie in de Energiebesparingsmodus, voor efficiënte en betrouwbare waterbehandeling.

BLACKCOMB-HO6.1 Residential Crossover UV Systems, UV Monitored

High-output UV systems with integrated 254nm UV monitoring for large residences or light commercial use. Flow rates calculated at lamp end-of-life.

  • Flow Rate (@ 16 mJ/cm²):
    8.0 gpm (30 lpm, 1.8 m³/hr)
  • Flow Rate (@ 30 mJ/cm²):
    4.0 gpm (15 lpm, 0.9 m³/hr)
  • Flow Rate (@ 40 mJ/cm²):
    3.0 gpm (11 lpm, 0.7 m³/hr)
  • Port Size:
    ½" MNPT
  • Lamp Watts:
    18
  • Power:
    20 watts
  • Replacement Lamp:
    RL-210HO
  • Replacement Sleeve:
    RQ-210
  • Reactor Dimensions:
    3.5 x 11.7" (8.9 x 29.8 cm)
  • Shipping Weight:
    4.5 kg (9.9 lbs)

  • Flow Rate (@ 16 mJ/cm²):
    19 gpm (72 lpm, 4.3 m³/hr)
  • Flow Rate (@ 30 mJ/cm²):
    10 gpm (38 lpm, 2.3 m³/hr)
  • Flow Rate (@ 40 mJ/cm²):
    7.0 gpm (26 lpm, 1.6 m³/hr)
  • Port Size:
    ¾" MNPT
  • Lamp Watts:
    34
  • Power:
    38 watts
  • Replacement Lamp:
    RL-330HO
  • Replacement Sleeve:
    RQ-330
  • Reactor Dimensions:
    3.5 x 16.5" (8.9 x 41.8 cm)
  • Shipping Weight:
    5.4 kg (11.9 lbs)

  • Flow Rate (@ 16 mJ/cm²):
    27 gpm (100 lpm, 6.1 m³/hr)
  • Flow Rate (@ 30 mJ/cm²):
    14 gpm (53 lpm, 3.2 m³/hr)
  • Flow Rate (@ 40 mJ/cm²):
    11 gpm (42 lpm, 2.5 m³/hr)
  • Port Size:
    1" MNPT
  • Lamp Watts:
    45
  • Power:
    57 watts
  • Replacement Lamp:
    RL-420HO
  • Replacement Sleeve:
    RQ-420
  • Reactor Dimensions:
    3.5 x 20.0" (8.9 x 50.8 cm)
  • Shipping Weight:
    6.0 kg (13.2 lbs)

  • Flow Rate (@ 16 mJ/cm²):
    47 gpm (180 lpm, 11 m³/hr)
  • Flow Rate (@ 30 mJ/cm²):
    25 gpm (95 lpm, 5.7 m³/hr)
  • Flow Rate (@ 40 mJ/cm²):
    19 gpm (72 lpm, 4.3 m³/hr)
  • Port Size:
    1" MNPT
  • Lamp Watts:
    67
  • Power:
    73 watts
  • Replacement Lamp:
    RL-600HO
  • Replacement Sleeve:
    RQ-600
  • Reactor Dimensions:
    3.5 x 26.9" (8.9 x 68.3 cm)
  • Shipping Weight:
    7.3 kg (16.1 lbs)

  • Flow Rate (@ 16 mJ/cm²):
    78 gpm (290 lpm, 18 m³/hr)
  • Flow Rate (@ 30 mJ/cm²):
    40 gpm (150 lpm, 9.1 m³/hr)
  • Flow Rate (@ 40 mJ/cm²):
    31 gpm (117 lpm, 7.0 m³/hr)
  • Port Size:
    1½" MNPT
  • Lamp Watts:
    101
  • Power:
    115 watts
  • Replacement Lamp:
    RL-950HO
  • Replacement Sleeve:
    RQ-950
  • Reactor Dimensions:
    3.5 x 40.7" (8.9 x 103.4 cm)
  • Shipping Weight:
    9.8 kg (21.6 lbs)

  • Flow Rate (30 mJ/cm² @ 75% UVT):
    10 gpm (39 lpm, 2.3 m³/hr)
  • Port Size:
    1" MNPT
  • Lamp Watts:
    45
  • Power:
    57 watts
  • Replacement Lamp:
    RL-420HW
  • Replacement Sleeve:
    RQ-420
  • Reactor Dimensions:
    3.5 x 20.0" (8.9 x 50.8 cm)
  • Shipping Weight:
    6.0 kg (13.2 lbs)

  • Flow Rate (30 mJ/cm² @ 75% UVT):
    17 gpm (65 lpm, 3.9 m³/hr)
  • Port Size:
    1" MNPT
  • Lamp Watts:
    67
  • Power:
    73 watts
  • Replacement Lamp:
    RL-600HW
  • Replacement Sleeve:
    RQ-600
  • Reactor Dimensions:
    3.5 x 26.9" (8.9 x 68.3 cm)
  • Shipping Weight:
    7.3 kg (16.1 lbs)

  • Flow Rate (30 mJ/cm² @ 75% UVT):
    29 gpm (110 lpm, 6.6 m³/hr)
  • Port Size:
    1½" MNPT
  • Lamp Watts:
    101
  • Power:
    115 watts
  • Replacement Lamp:
    RL-950HW
  • Replacement Sleeve:
    RQ-950
  • Reactor Dimensions:
    3.5 x 40.7" (8.9 x 103.4 cm)
  • Shipping Weight:
    9.8 kg (21.6 lbs)

  • Flow Rate (30 mJ/cm² @ 50% UVT):
    2.0 gpm (8.0 lpm, 0.45 m³/hr)
  • Port Size:
    ½" MNPT
  • Lamp Watts:
    18
  • Power:
    20 watts
  • Replacement Lamp:
    RL-210HO
  • Replacement Sleeve:
    RQ-210
  • Reactor Dimensions:
    3.5 x 11.7" (8.9 x 29.8 cm)
  • Shipping Weight:
    4.5 kg (9.9 lbs)

  • Flow Rate (30 mJ/cm² @ 50% UVT):
    4.5 gpm (17 lpm, 1.0 m³/hr)
  • Port Size:
    ¾" MNPT
  • Lamp Watts:
    34
  • Power:
    38 watts
  • Replacement Lamp:
    RL-330HO
  • Replacement Sleeve:
    RQ-330
  • Reactor Dimensions:
    3.5 x 16.5" (8.9 x 41.8 cm)
  • Shipping Weight:
    5.4 kg (11.9 lbs)

  • Flow Rate (30 mJ/cm² @ 50% UVT):
    6.2 gpm (23 lpm, 1.4 m³/hr)
  • Port Size:
    1" MNPT
  • Lamp Watts:
    45
  • Power:
    57 watts
  • Replacement Lamp:
    RL-420HO
  • Replacement Sleeve:
    RQ-420
  • Reactor Dimensions:
    3.5 x 20.0" (8.9 x 50.8 cm)
  • Shipping Weight:
    6.0 kg (13.2 lbs)

  • Flow Rate (30 mJ/cm² @ 50% UVT):
    10 gpm (39 lpm, 2.3 m³/hr)
  • Port Size:
    1" MNPT
  • Lamp Watts:
    67
  • Power:
    73 watts
  • Replacement Lamp:
    RL-600HO
  • Replacement Sleeve:
    RQ-600
  • Reactor Dimensions:
    3.5 x 26.9" (8.9 x 68.3 cm)
  • Shipping Weight:
    7.3 kg (16.1 lbs)

  • Flow Rate (30 mJ/cm² @ 50% UVT):
    17 gpm (66 lpm, 4.0 m³/hr)
  • Port Size:
    1½" MNPT
  • Lamp Watts:
    101
  • Power:
    115 watts
  • Replacement Lamp:
    RL-950HO
  • Replacement Sleeve:
    RQ-950
  • Reactor Dimensions:
    3.5 x 40.7" (8.9 x 103.4 cm)
  • Shipping Weight:
    9.8 kg (21.6 lbs)

  • Flow Rate (150 mJ/cm² @ 95% UVT):
    3.0 gpm (11 lpm, 0.68 m³/hr)
  • Port Size:
    1" MNPT
  • Lamp Watts:
    45
  • Power:
    57 watts
  • Replacement Lamp:
    RL-420HO-TOC
  • Replacement Sleeve:
    RQ-420
  • Reactor Dimensions:
    3.5 x 20.0" (8.9 x 50.8 cm)
  • Shipping Weight:
    6.0 kg (13.2 lbs)

  • Flow Rate (150 mJ/cm² @ 95% UVT):
    5.0 gpm (19 lpm, 1.1 m³/hr)
  • Port Size:
    1" MNPT
  • Lamp Watts:
    67
  • Power:
    73 watts
  • Replacement Lamp:
    RL-600HO-TOC
  • Replacement Sleeve:
    RQ-600
  • Reactor Dimensions:
    3.5 x 26.9" (8.9 x 68.3 cm)
  • Shipping Weight:
    7.3 kg (16.1 lbs)

  • Flow Rate (150 mJ/cm² @ 95% UVT):
    8.5 gpm (32 lpm, 1.9 m³/hr)
  • Port Size:
    1½" MNPT
  • Lamp Watts:
    101
  • Power:
    115 watts
  • Replacement Lamp:
    RL-950HO-TOC
  • Replacement Sleeve:
    RQ-950
  • Reactor Dimensions:
    3.5 x 40.7" (8.9 x 103.4 cm)
  • Shipping Weight:
    9.8 kg (21.6 lbs)

Common Specifications

  • Electrical:
    90-265V / 50-60Hz
  • Plug Type:
    American: Nema 5/15 ("1" suffix), European: CEE 7/7 ("2" suffix), British: BS 1363 ("3" suffix), Australian/NZ: AS/NZ 3112 ("4" suffix)
  • Chamber Material:
    316L Stainless Steel, A249 Pressure Rated Tubing, Polished & Passivated
  • Max Operating Pressure:
    10.3 bar (150 psi)
  • Controller Dimensions:
    8.6 x 4.2 x 4" (217.4 x 107.5 x 102 mm)
  • UV Monitor:
    Yes (254nm discrete with Teflon technology)
  • Dry Contacts (solenoid-ready):
    Optional
  • 4-20 mA Output:
    Optional
  • Lamp Age Counter:
    Yes (color display)
  • Lamp-Out Indicator:
    Yes (audible & visual)

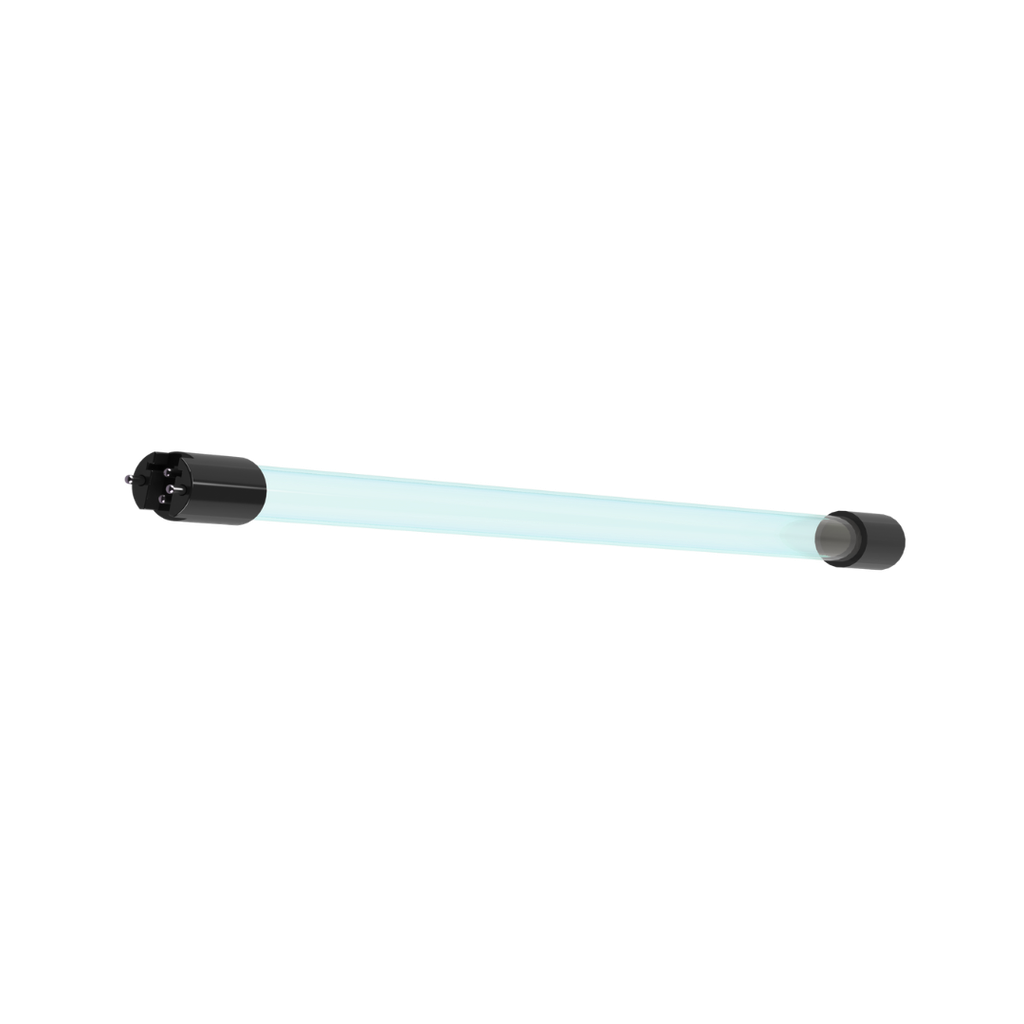

Replacement Parts

  • RL-210HO:
    Fits LBH6-052, LBH6-052-50, 8.3" (210mm), 10,000 hrs, Blue base, 18W, 0.1kg (0.2 lbs)
  • RL-330HO:
    Fits LBH6-102, LBH6-102-50, 13.0" (330mm), 10,000 hrs, Blue base, 34W, 0.1kg (0.2 lbs)
  • RL-420HO:
    Fits LBH6-152, LBH6-152-50, 16.5" (420mm), 10,000 hrs, Blue base, 45W, 0.2kg (0.5 lbs)
  • RL-600HO:
    Fits LBH6-252, LBH6-252-50, 23.6" (600mm), 10,000 hrs, Blue base, 67W, 0.3kg (0.7 lbs)
  • RL-950HO:
    Fits LBH6-402, LBH6-402-50, 37.4" (950mm), 10,000 hrs, Blue base, 101W, 0.4kg (0.9 lbs)
  • RL-420HW:
    Fits LBH6-152-HW, 16.5" (420mm), 10,000 hrs, Red base, 45W, 0.2kg (0.5 lbs)
  • RL-600HW:
    Fits LBH6-252-HW, 23.6" (600mm), 10,000 hrs, Red base, 67W, 0.3kg (0.7 lbs)
  • RL-950HW:
    Fits LBH6-402-HW, 37.4" (950mm), 10,000 hrs, Red base, 101W, 0.4kg (0.9 lbs)
  • RL-420HO-TOC:
    Fits LBH6-152-TOC, 16.5" (420mm), 10,000 hrs, Yellow base, 45W, 0.2kg (0.5 lbs)
  • RL-600HO-TOC:
    Fits LBH6-252-TOC, 23.6" (600mm), 10,000 hrs, Yellow base, 67W, 0.3kg (0.7 lbs)
  • RL-950HO-TOC:
    Fits LBH6-402-TOC, 37.4" (950mm), 10,000 hrs, Yellow base, 101W, 0.4kg (0.9 lbs)

  • RQ-210:
    Fits LBH6-052, LBH6-052-50, ID 20mm, OD 22.5mm, 256mm, 0.1kg (0.2 lbs)
  • RQ-330:
    Fits LBH6-102, LBH6-102-50, ID 20mm, OD 22.5mm, 376mm, 0.1kg (0.2 lbs)
  • RQ-420:
    Fits LBH6-152, LBH6-152-50, LBH6-152-HW, LBH6-152-TOC, ID 20mm, OD 22.5mm, 466mm, 0.2kg (0.5 lbs)
  • RQ-600:
    Fits LBH6-252, LBH6-252-50, LBH6-252-HW, LBH6-252-TOC, ID 20mm, OD 22.5mm, 646mm, 0.3kg (0.7 lbs)
  • RQ-950:
    Fits LBH6-402, LBH6-402-50, LBH6-402-HW, LBH6-402-TOC, ID 20mm, OD 22.5mm, 996mm, 0.4kg (0.9 lbs)

  • RCHO-56.12:
    Fits All Models, 90-265V / 50-60Hz, Power Cord: American (RCHO-56.12-1), European (RCHO-56.12-2), British (RCHO-56.12-3), Australian/NZ (RCHO-56.12-4), 1.4kg (3.1 lbs)

  • RSHO-B3.5:
    Fits All Models, UV Monitor for BLACKCOMB-HO 6.1 products with Teflon technology, 0.2kg (0.4 lbs)

Benieuwd wat de mogelijkheden zijn?

Vraag onze e​​​​​​xperts​
Model: LBH6-052: 4 GPM (15 L/min) of LBH6-102: 10 GPM (38 L/min) of LBH6-152: 14 GPM (53 L/min) of LBH6-252: 25 GPM (95 L/min) of LBH6-402: 40 GPM (150 L/min) of LBH6-152-HW: 10 GPM (39 L/min) (Hot Water) of LBH6-252-HW: 17 GPM (65 L/min) (Hot Water) of LBH6-402-HW: 29 GPM (110 L/min) (Hot Water) of LBH6-052-50: 2 GPM (8 L/min) (Low UVT) of LBH6-102-50: 4,5 GPM (17 L/min) (Low UVT) of LBH6-152-50: 6,2 GPM (23 L/min) (Low UVT) of LBH6-252-50: 10 GPM (39 L/min) (Low UVT) of LBH6-402-50: 17 GPM (66 L/min) (Low UVT) of LBH6-152-TOC: 3 GPM (11 L/min) (TOC) of LBH6-252-TOC: 5 GPM (19 L/min) (TOC) of LBH6-402-TOC: 8,5 GPM (32 L/min) (TOC)
Merk LuminorUV
UV Monitor Ja
Solenoid Output Optionele solenoïde module (MOD-SOL1), afzonderlijk verkocht
4-20 mA Output Optionele 4-20mA module (MOD-420), afzonderlijk verkocht
Droge contacten Optionele externe alarmmodule (MOD-RAM), afzonderlijk verkocht
*Notitie Zie beschrijving voor uitgebreide specificaties

Product Warranty for LuminorUV Products Distributed by AQMOS.

At AQMOS Waterbehandeling, we’re committed to providing you with reliable UV water treatment systems from LuminorUV, backed by strong warranties. As your LuminorUV distributor in the Netherlands and Belgium, we want to make sure you understand what’s covered and how to make a claim. Below are the details of the limited warranties provided by LuminorUV on their products.

Warranty Coverage

LuminorUV offers the following limited warranties on their products, effective from the date of original purchase or installation (proper documentation required):

  • UV Systems: 10-year limited warranty on stainless steel reactors.
  • Pool UV Systems: 3-year limited warranty.
  • UV LED Systems: 1-year limited warranty.
  • Electronics: 3-year limited warranty on ballasts and controllers.
  • UV Lamps, UV Sensors & Quartz Sleeves: 1-year limited warranty.

LuminorUV will repair, replace, or refund (at their sole discretion) any defective product or component within the specified warranty period, provided it is defective in materials or workmanship and meets all other conditions outlined below.

Warranty Limitations

This warranty does not apply if:

  • The product was not installed or used according to LuminorUV’s instructions.
  • The product has been modified without authorization.
  • Non-original parts or components were used.
  • The product was damaged during shipping or due to environmental conditions (e.g., water damage, freezing temperatures).
  • The product was used outside of LuminorUV’s specified conditions.
  • The serial number has been altered, defaced, or removed.
  • The water quality does not meet the following standards:
    • Hardness ≤ 120 mg/L (7 gpg)
    • Iron ≤ 0.3 mg/L (ppm)
    • Manganese ≤ 0.05 mg/L (ppm)
    • Tannins ≤ 0.1 mg/L (ppm)
    • Turbidity ≤ 1 NTU
    • Transmittance (UVT) ≥ 75% (50% for Low-UVT systems)

How to Claim Warranty Service

If you believe your LuminorUV product is defective and covered under this warranty, please contact us at info@aqmos.nl with:

  • Proof of purchase and installation date.
  • Details of the issue, including when it occurred.
  • Any other information we may request.

We’ll guide you through the process and assist with your claim. Please note that you must first contact us to obtain a Warranty Return Authorization before returning any product to LuminorUV. Products must be returned freight prepaid, and all required documentation must be included.

Important Notes

  • Legal Guarantee: In addition to this manufacturer’s warranty, you have rights under the legal guarantee provided by EU law. This ensures that products are of satisfactory quality and fit for purpose for a minimum period of 2 years. This commercial warranty does not affect your statutory rights.
  • Warranty Start Date:
  • The warranty period begins on the date of purchase, as shown on your proof of purchase. Please retain your receipt or invoice, as it’s required to verify the warranty period if you need to make a claim.

Our Commitment to You

At AQMOS, we’re here to help. If you have any questions about this warranty or need support with your LuminorUV product, don’t hesitate to reach out. Your satisfaction is our priority, and we’re proud to offer these high-quality systems with solid warranties to back them up.

Vergelijkbare Producten
Accessoireproducten


Hulp Nodig Bij Je Keuze?


Bij AQMOS Waterbehandeling helpen we je graag. Vul ons formulier in of neem op een andere manier contact op en profiteer van:

​✅ Gratis, deskundig advies
​✅ A-merk producten
​✅ Transparante en eerlijke prijzen
​✅ Installatie van klein tot groot

(Max. 5 bestanden / foto's van 20mb)
Verzenden

Bedankt voor je bericht!



Ons team zal je zo snel mogelijk een bericht sturen of bellen.
In de tussentijd nodigen wij je uit om rond te kijken op onze website.
